Tools

Function Calling

Define custom tools that the model can invoke during a conversation. The model requests the call, you execute it locally, and return the result. This enables integration with databases, APIs, and any external system.

With streaming, the function call is returned in whole in a single chunk, not streamed across chunks.

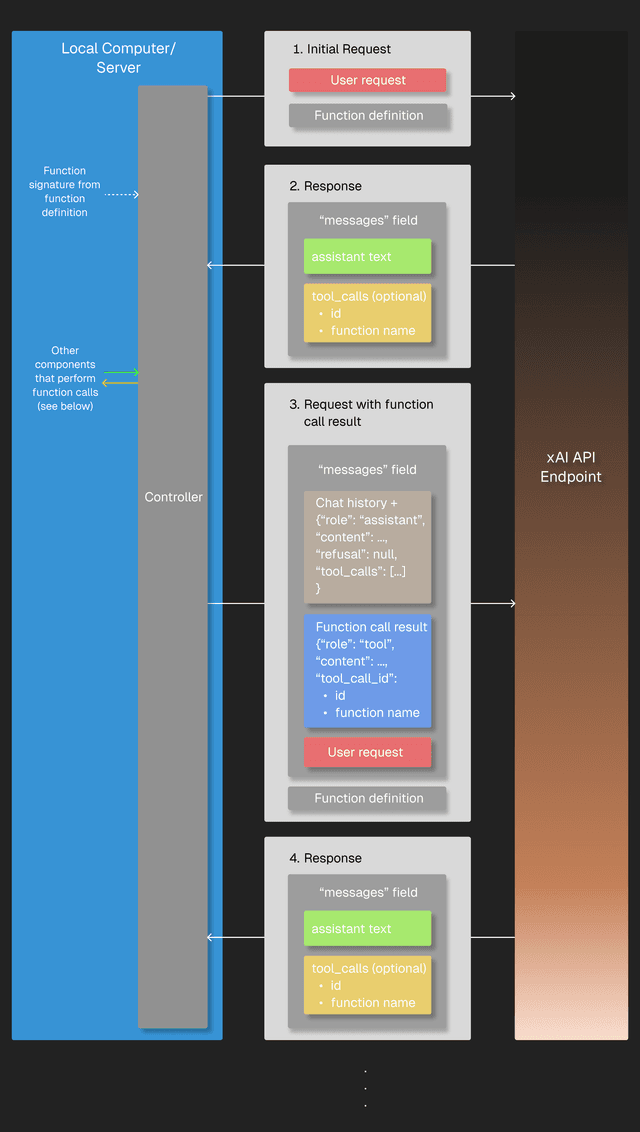

How It Works

Define tools with a name, description, and JSON schema for parameters
Include tools in your request
Model returns a tool_call when it needs external data
Execute the function locally and return the result
Model continues with your result

Quick Start

import os
import json

from xai_sdk import Client
from xai_sdk.chat import user, tool, tool_result

client = Client(api_key=os.getenv("XAI_API_KEY"))

# Define tools
tools = [
    tool(
        name="get_temperature",
        description="Get current temperature for a location",
        parameters={
            "type": "object",
            "properties": {
                "location": {"type": "string", "description": "City name"},
                "unit": {"type": "string", "enum": ["celsius", "fahrenheit"], "default": "fahrenheit"}
            },
            "required": ["location"]
        },
    ),
]

chat = client.chat.create(
    model="grok-4-1-fast-reasoning",
    tools=tools,
)
chat.append(user("What is the temperature in San Francisco?"))
response = chat.sample()

# Handle tool calls
if response.tool_calls:
    chat.append(response)
    for tc in response.tool_calls:
        args = json.loads(tc.function.arguments)
        # Execute your function
        result = {"location": args["location"], "temperature": 59, "unit": args.get("unit", "fahrenheit")}
        chat.append(tool_result(result))

    response = chat.sample()

print(response.content)

Defining Tools with Pydantic

Use Pydantic models for type-safe parameter schemas:

from typing import Literal
from pydantic import BaseModel, Field
from xai_sdk.chat import tool

class TemperatureRequest(BaseModel):
    location: str = Field(description="City and state, e.g. San Francisco, CA")
    unit: Literal["celsius", "fahrenheit"] = Field("fahrenheit", description="Temperature unit")

class CeilingRequest(BaseModel):
    location: str = Field(description="City and state, e.g. San Francisco, CA")

# Generate JSON schema from Pydantic models
tools = [
    tool(
        name="get_temperature",
        description="Get current temperature for a location",
        parameters=TemperatureRequest.model_json_schema(),
    ),
    tool(
        name="get_ceiling",
        description="Get current cloud ceiling for a location",
        parameters=CeilingRequest.model_json_schema(),
    ),
]

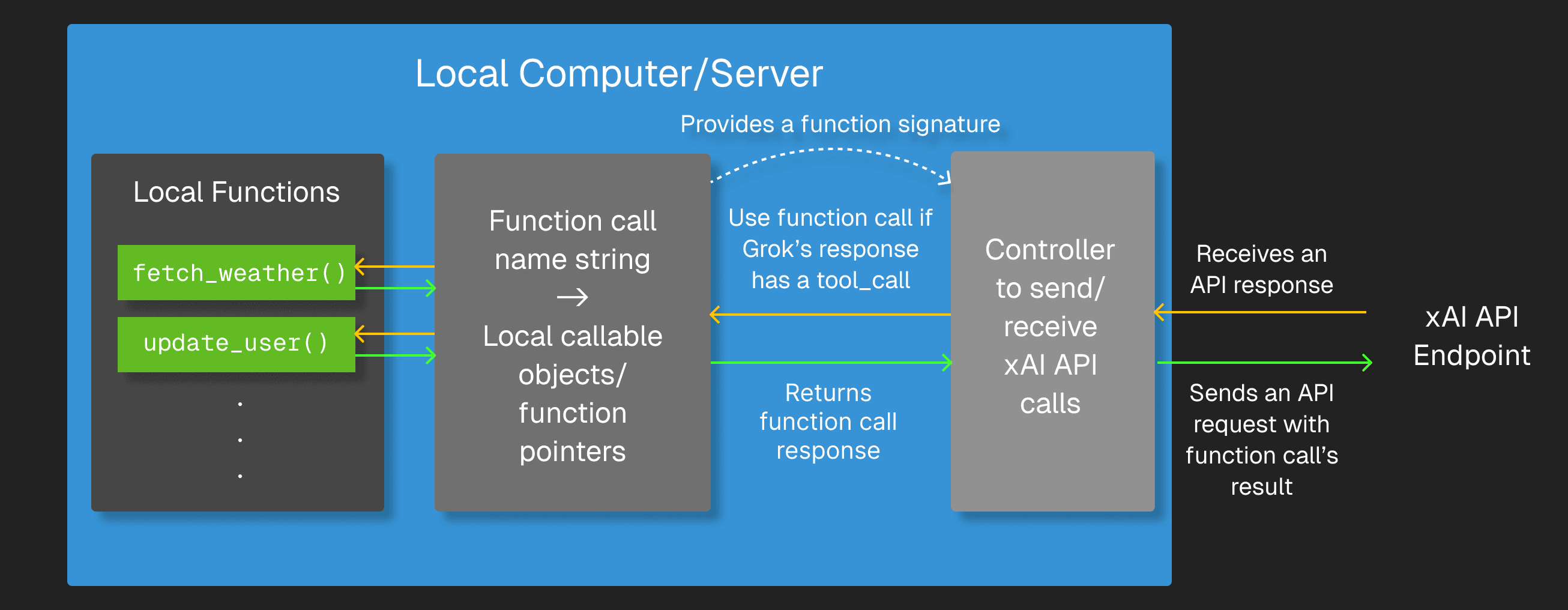

Handling Tool Calls

When the model wants to use your tool, execute the function and return the result:

import json

def get_temperature(location: str, unit: str = "fahrenheit") -> dict:
    # In production, call a real weather API
    temp = 59 if unit == "fahrenheit" else 15
    return {"location": location, "temperature": temp, "unit": unit}

def get_ceiling(location: str) -> dict:
    return {"location": location, "ceiling": 15000, "unit": "ft"}

tools_map = {
    "get_temperature": get_temperature,
    "get_ceiling": get_ceiling,
}

chat.append(user("What's the weather in Denver?"))
response = chat.sample()

# Process tool calls
if response.tool_calls:
    chat.append(response)

    for tool_call in response.tool_calls:
        name = tool_call.function.name
        args = json.loads(tool_call.function.arguments)

        result = tools_map[name](**args)
        chat.append(tool_result(result))

    response = chat.sample()

print(response.content)

Combining with Built-in Tools

Function calling works alongside built-in agentic tools. The model can use web search, then call your custom function:

from xai_sdk.chat import tool
from xai_sdk.tools import web_search, x_search

tools = [
    web_search(),                    # Built-in: runs on xAI servers
    x_search(),                      # Built-in: runs on xAI servers
    tool(                            # Custom: runs on your side
        name="save_to_database",
        description="Save research results to the database",
        parameters={
            "type": "object",
            "properties": {
                "data": {"type": "string", "description": "Data to save"}
            },
            "required": ["data"]
        },
    ),
]

chat = client.chat.create(
    model="grok-4-1-fast-reasoning",
    tools=tools,
)

When mixing tools:

Built-in tools execute automatically on xAI servers
Custom tools pause execution and return to you for handling

See Advanced Usage for complete examples with tool loops.

Tool Choice

Control when the model uses tools:

Value	Behavior
`"auto"`	Model decides whether to call a tool (default)
`"required"`	Model must call at least one tool
`"none"`	Disable tool calling
`{"type": "function", "function": {"name": "..."}}`	Force a specific tool

Parallel Function Calling

By default, parallel function calling is enabled — the model can request multiple tool calls in a single response. Process all of them before continuing:

Python

# response.tool_calls may contain multiple calls
for tool_call in response.tool_calls:
    result = tools_map[tool_call.function.name](**json.loads(tool_call.function.arguments))
    # Append each result...

Disable with parallel_tool_calls: false in your request.

Tool Schema Reference

Field	Required	Description
`name`	Yes	Unique identifier (max 200 tools per request)
`description`	Yes	What the tool does — helps the model decide when to use it
`parameters`	Yes	JSON Schema defining function inputs

Parameter Schema

JSON

{
  "type": "object",
  "properties": {
    "location": {
      "type": "string",
      "description": "City name"
    },
    "unit": {
      "type": "string",
      "enum": ["celsius", "fahrenheit"],
      "default": "celsius"
    }
  },
  "required": ["location"]
}

Complete Vercel AI SDK Example

The Vercel AI SDK handles tool definition, execution, and the request/response loop automatically:

Javascript

import { xai } from '@ai-sdk/xai';
import { streamText, tool, stepCountIs } from 'ai';
import { z } from 'zod';

const result = streamText({
  model: xai.responses('grok-4-1-fast-reasoning'),
  tools: {
    getCurrentTemperature: tool({
      description: 'Get current temperature for a location',
      parameters: z.object({
        location: z.string().describe('City and state, e.g. San Francisco, CA'),
        unit: z.enum(['celsius', 'fahrenheit']).default('fahrenheit'),
      }),
      execute: async ({ location, unit }) => ({
        location,
        temperature: unit === 'fahrenheit' ? 59 : 15,
        unit,
      }),
    }),
    getCurrentCeiling: tool({
      description: 'Get current cloud ceiling for a location',
      parameters: z.object({
        location: z.string().describe('City and state'),
      }),
      execute: async ({ location }) => ({
        location,
        ceiling: 15000,
        ceiling_type: 'broken',
        unit: 'ft',
      }),
    }),
  },
  stopWhen: stepCountIs(5),
  prompt: "What's the temperature and cloud ceiling in San Francisco?",
});

for await (const chunk of result.fullStream) {
  switch (chunk.type) {
    case 'text-delta':
      process.stdout.write(chunk.text);
      break;
    case 'tool-call':
      console.log(`Tool call: ${chunk.toolName}`, chunk.args);
      break;
    case 'tool-result':
      console.log(`Tool result: ${chunk.toolName}`, chunk.result);
      break;
  }
}
